Oracle Analytics Server 2025 Installation and Configuration Workshop

1. Check the Certification Matrix for System Compatibility

• Currently Oracle Analytics Server is supported only on Linux and Windows Servers.

According to your platform/OS, you need to check the updated certification (compatibility) matrix provided by Oracle in the following URL:

Oracle Analytics Server Certification Matrix

Workshop Virtual Machine Server Specifications

2. Download the Binaries

• Java Developers Kit 8
• Oracle WebLogic Server 12c (12.2.1.4) Generic – Download the file “Fusion Middleware Infrastructure Installer (1.5 GB)”
• Oracle Analytics Server 2025 Windows

3. Installation

We shall be doing a standard installation

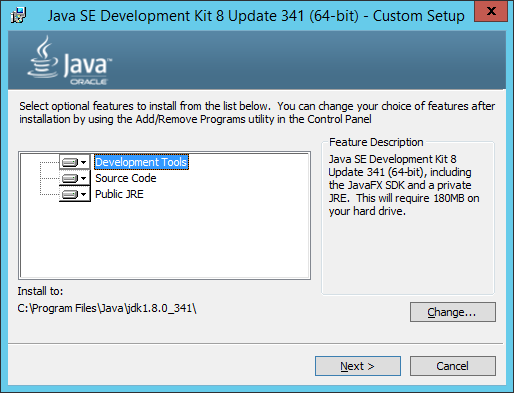

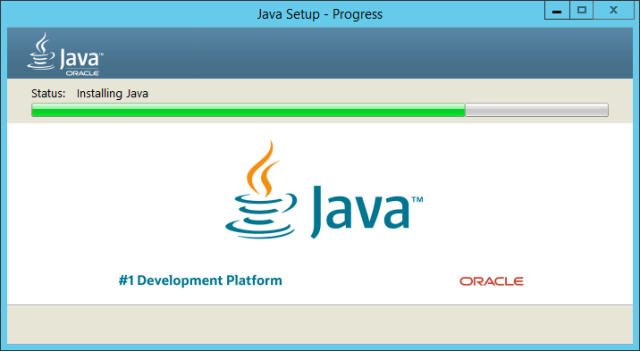

Setup Java Development Kit 8_341

Change installation directory to: C:\Java\jdk1.8.0_341\

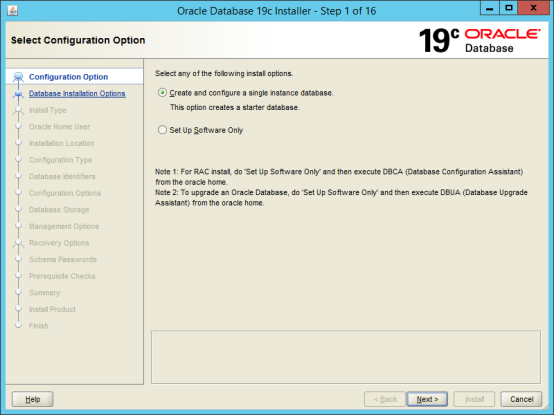

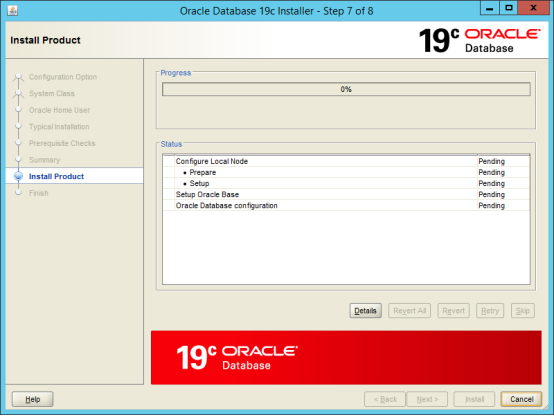

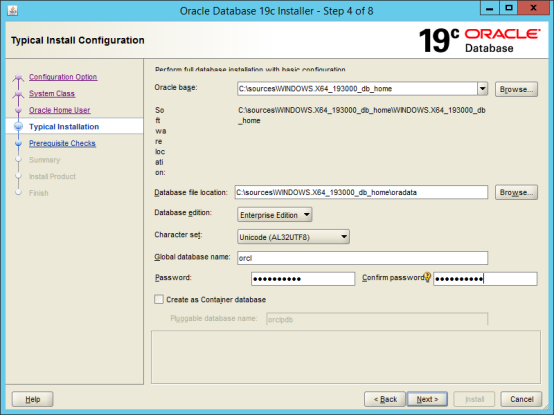

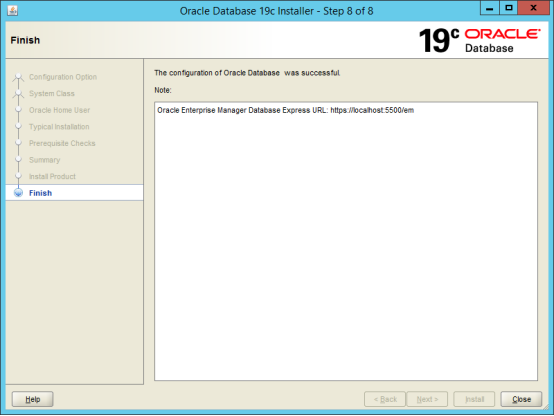

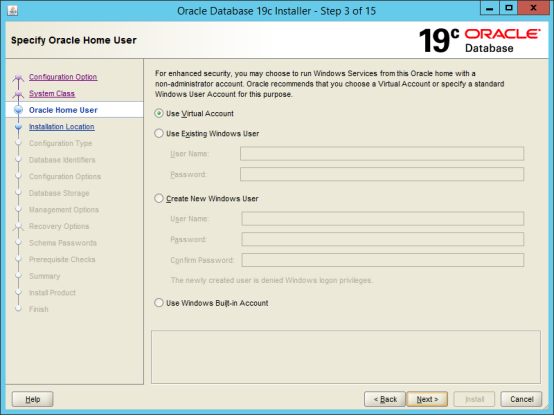

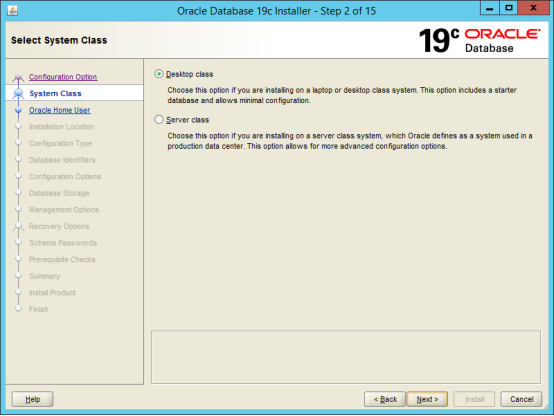

Setup Oracle Database 19c

Run: C:\sources\WINDOWS.X64_193000_db_home\setup.exe (run as administrator)

• Oracle Base: C:\sources\WINDOWS.X64_193000_db_home
• Global db name: orcl
• Sid name: orcl

• Password: Oracle_123

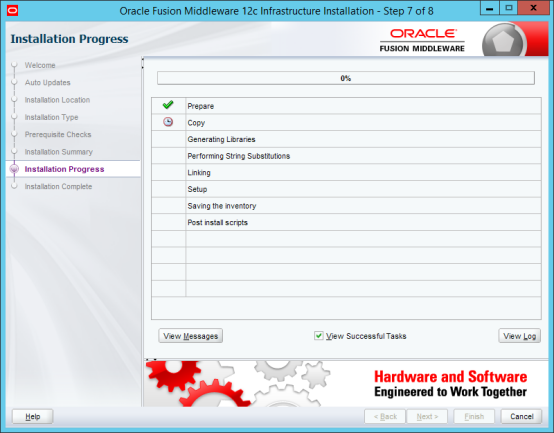

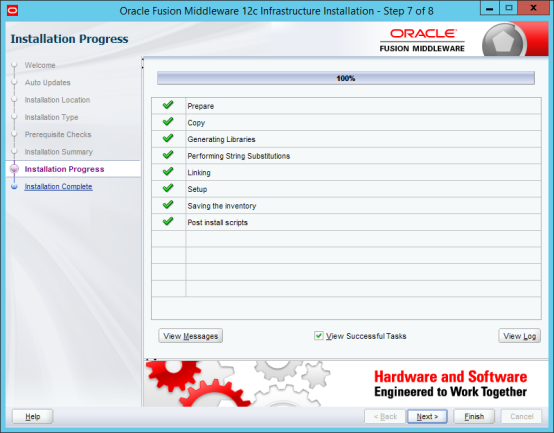

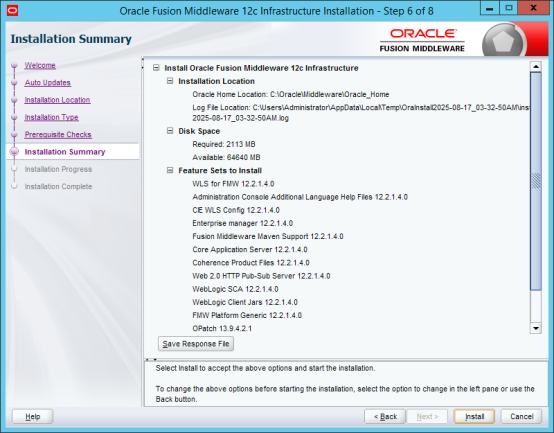

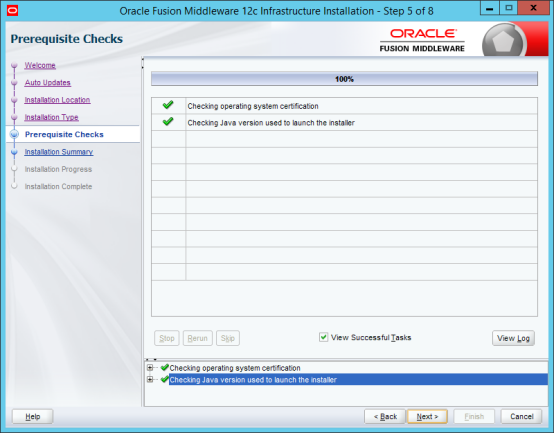

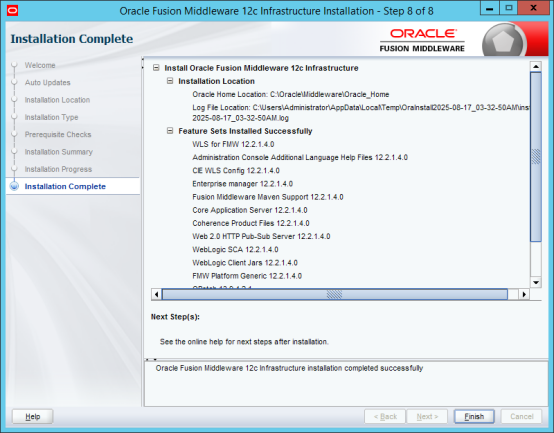

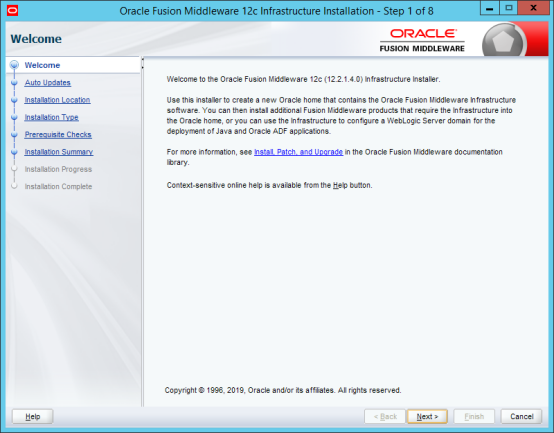

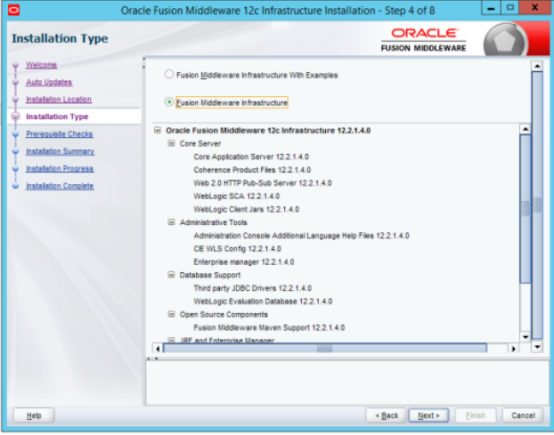

Install Oracle Fusion Middleware

Using JDK home:


Cd C:\Java\jdk1.8.0_341\bin
Java -jar C:\sources\fmw_12.2.1.4.0_infrastructure_Disk1_1of1\fmw_12.2.1.4.0_infrastructure.jar


ORACLE HOME: C:\Oracle\Middleware\Oracle_Home

On Windows operating systems, the installer writes log files to the Oracle_Inventory_Location\logs directory.

In the workshop virtual image: C:\Users\Administrator\AppData\Local\Temp\OraInstall2025-08-17_03-32-50AM\install2025-08-17_03-32-50AM.log


Cd C:\Java\jdk1.8.0_341\bin

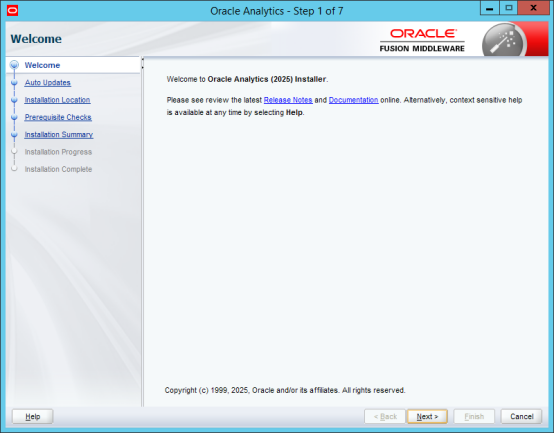

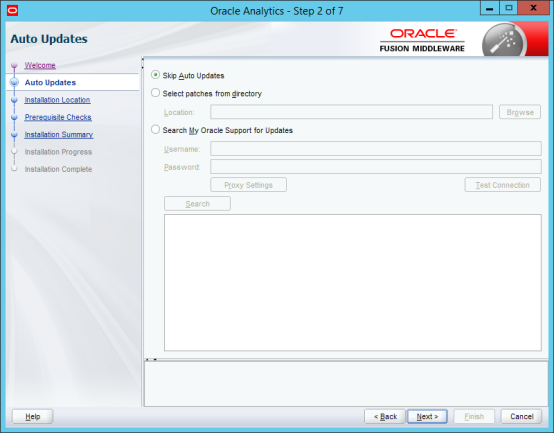

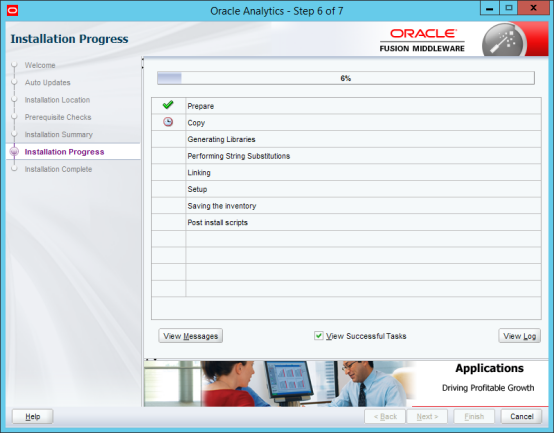

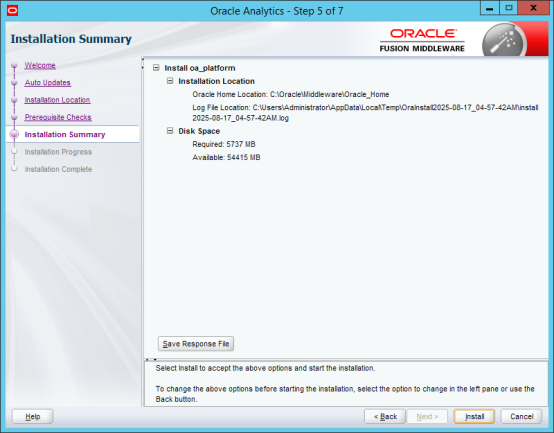

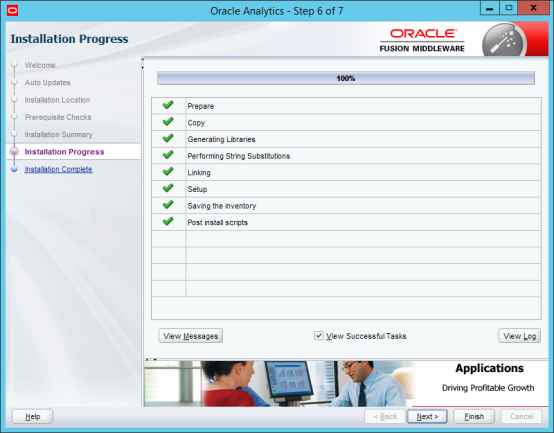

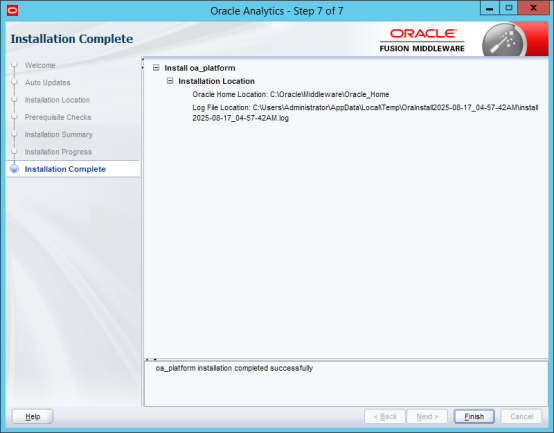

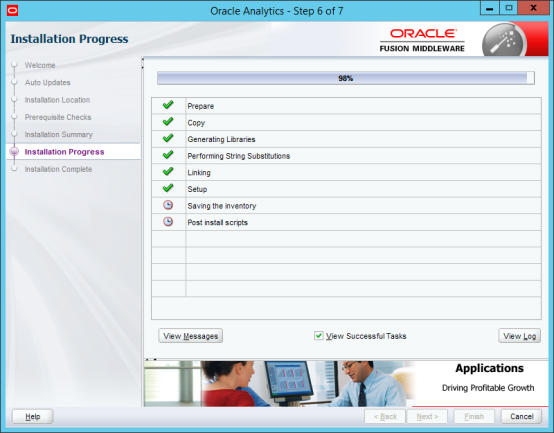

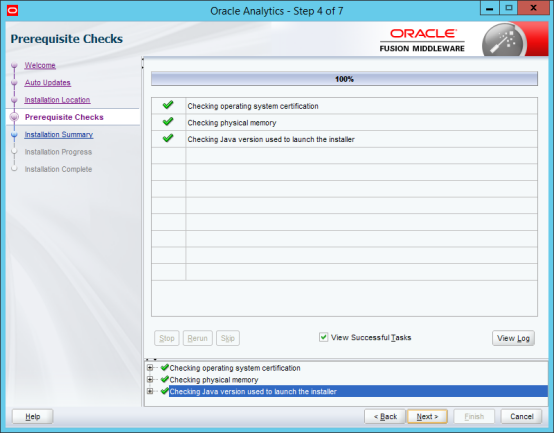

java -jar C:\sources\OAS_25\Server\V1048326-01\Oracle_Analytics_Server_2025_Windows.jar


4. Configuration

The Configuration Assistant is a multi-functional utility that helps you to create database schemas, specify a port range, create system components, and start the application servers in addition to configuring the standard topology.

Oracle strongly recommends that you use the Configuration Assistant to configure the Oracle Analytics Server domain.

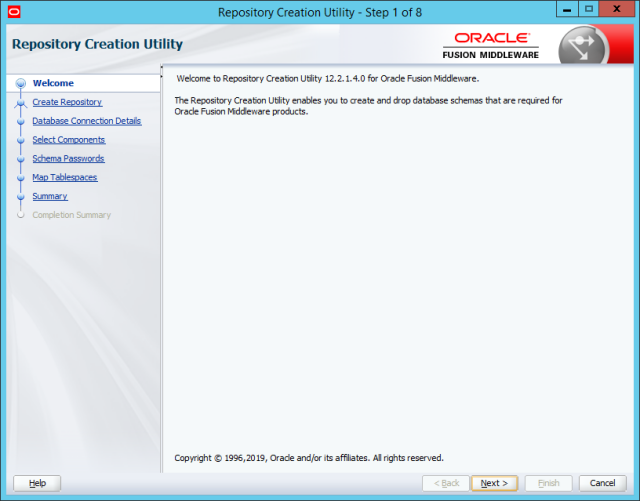

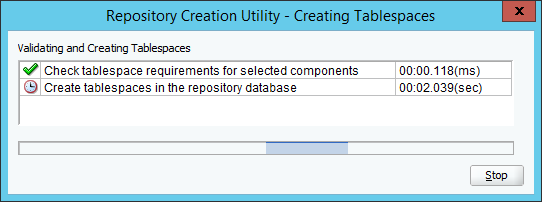

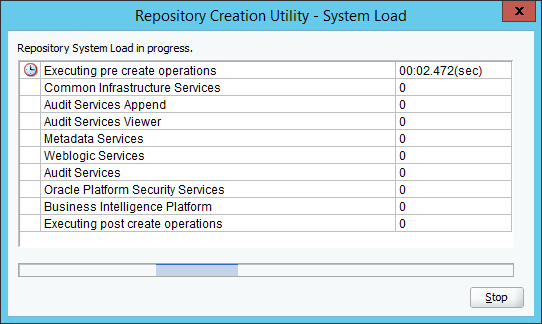

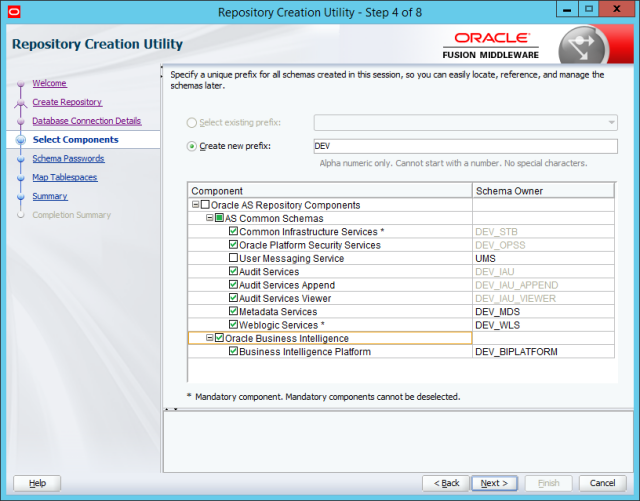

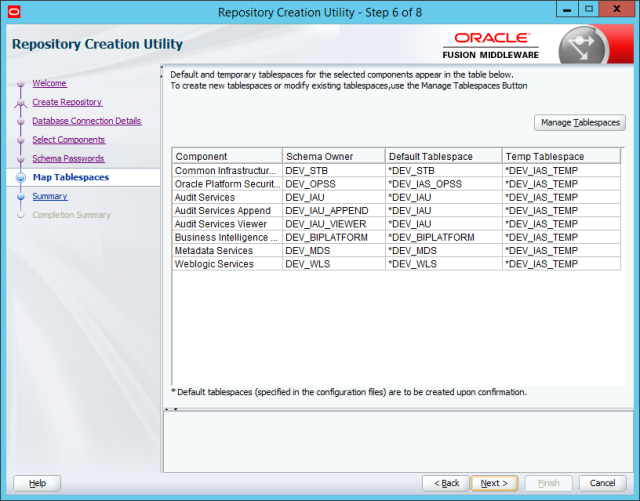

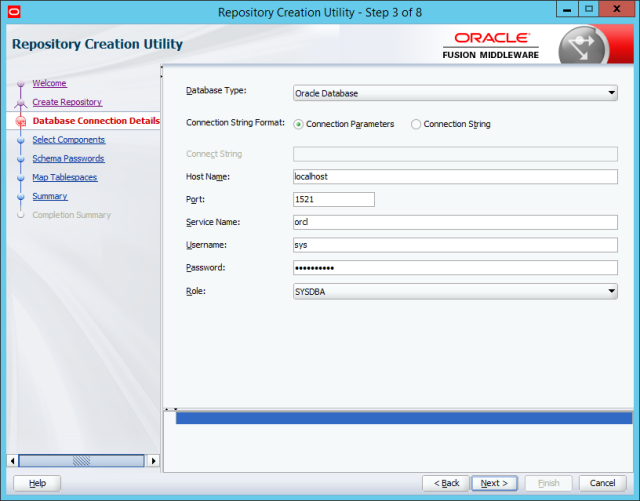

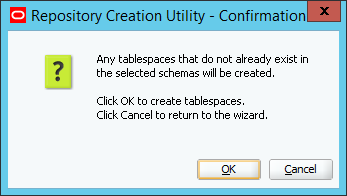

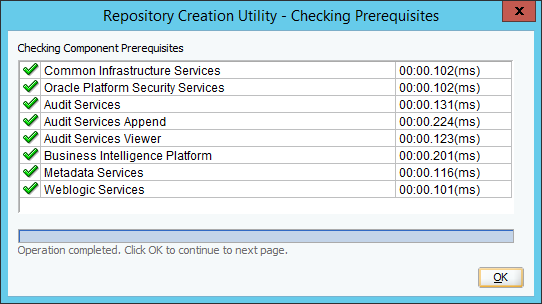

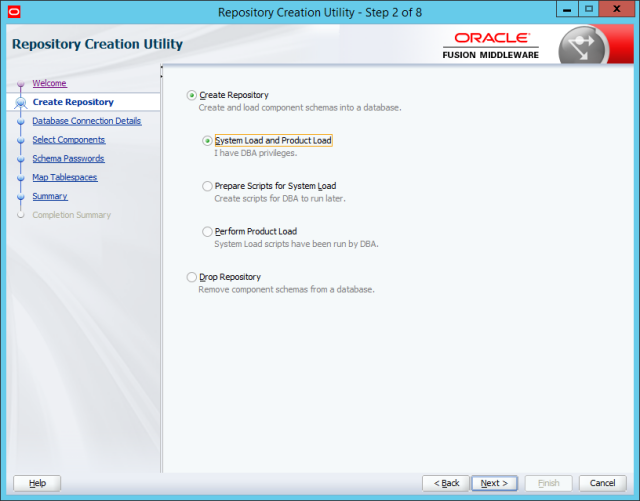

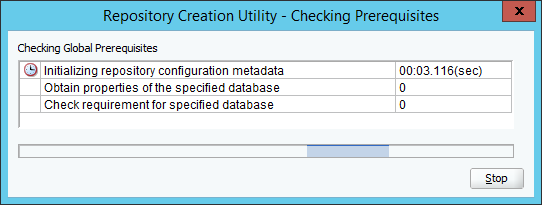

Starting the Repository Creation Utility (RCU)


set JAVA_HOME=C:\home\Oracle\Java\jdk1.8.0
Cd C:\Oracle\Middleware\Oracle_Home\oracle_common\bin
rcu.bat

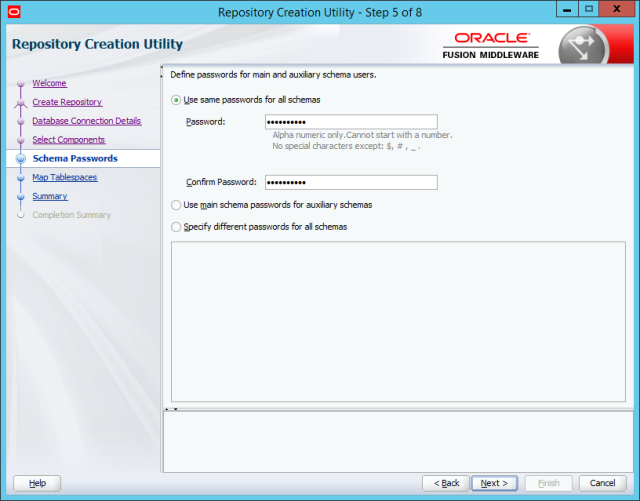

Password : Oracle_123

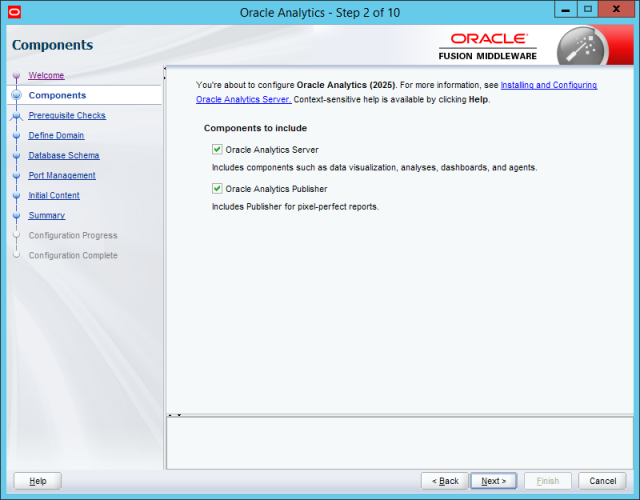

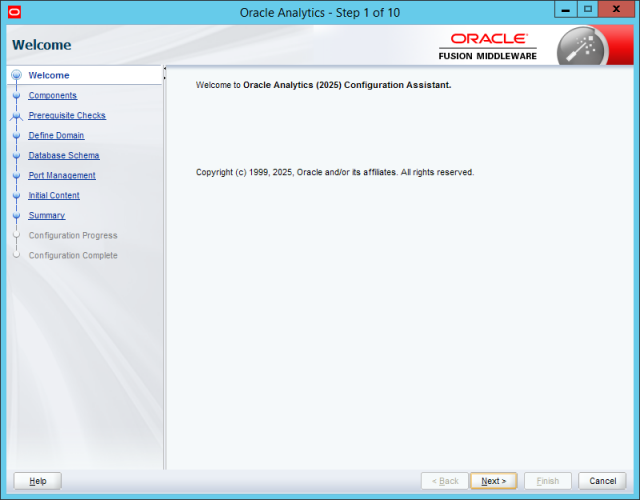

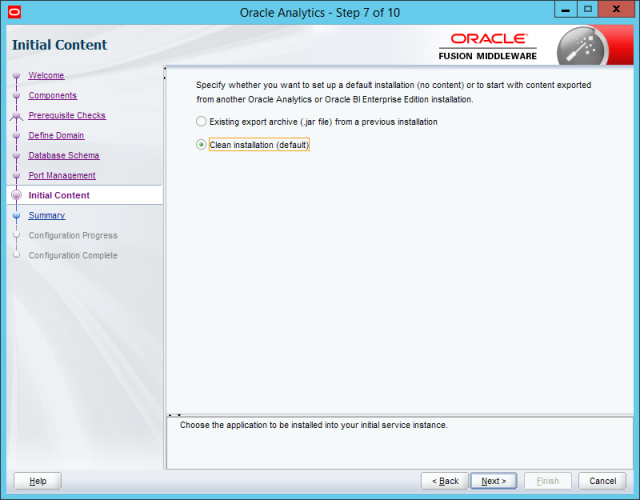

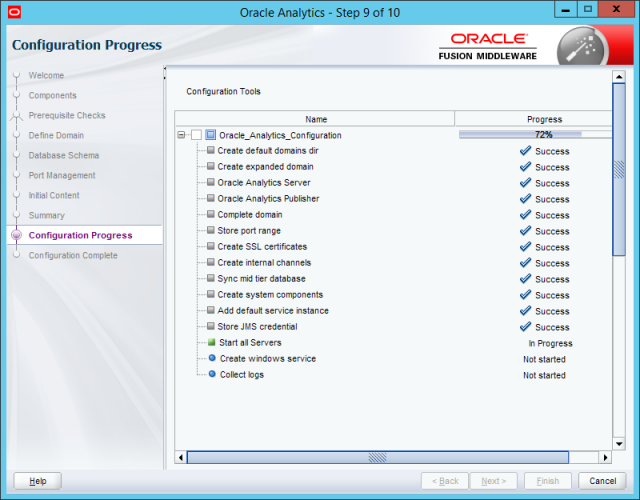

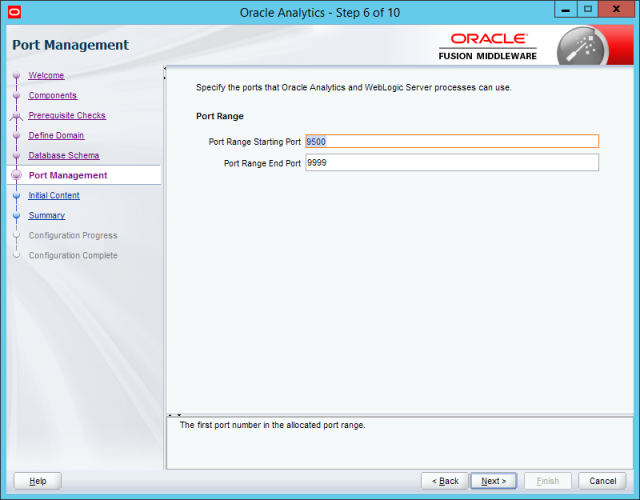

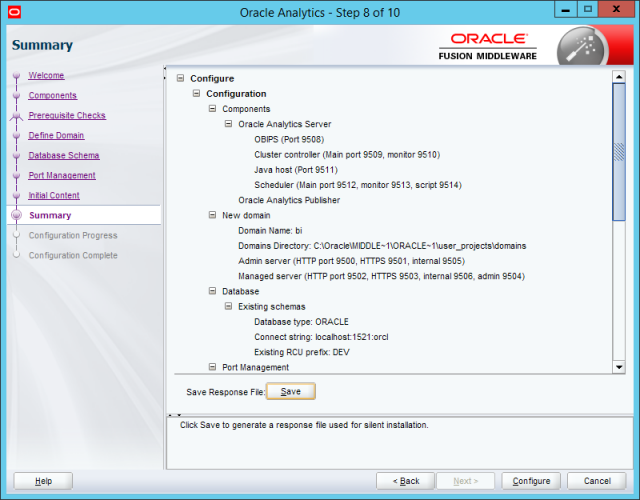

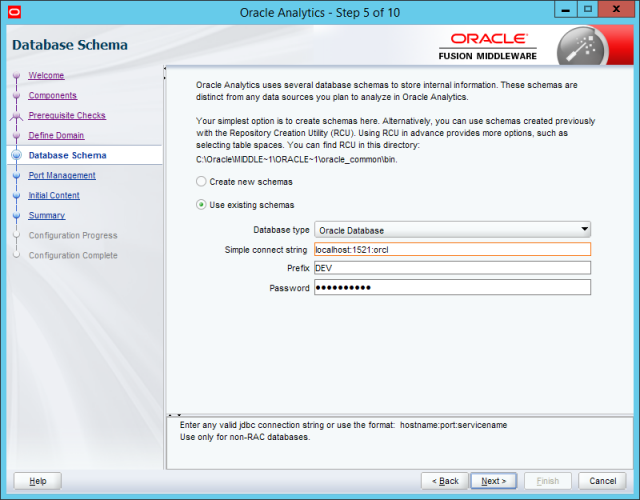

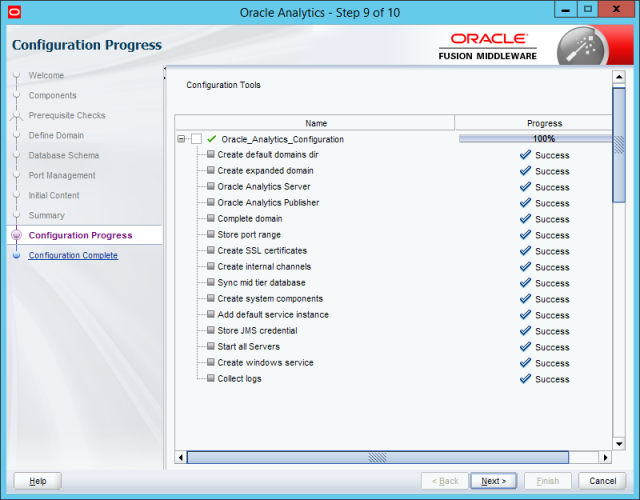

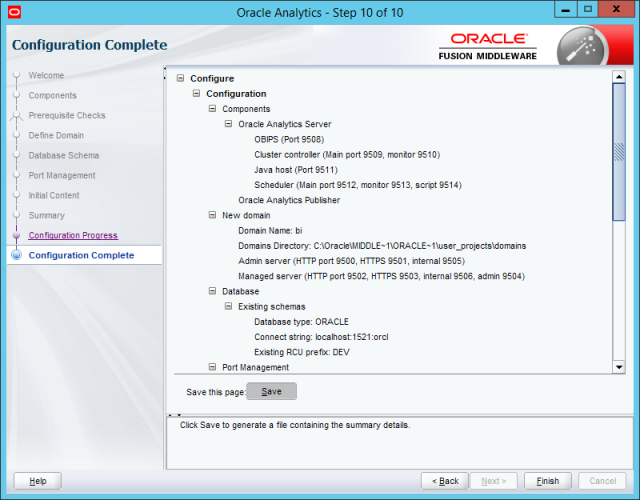

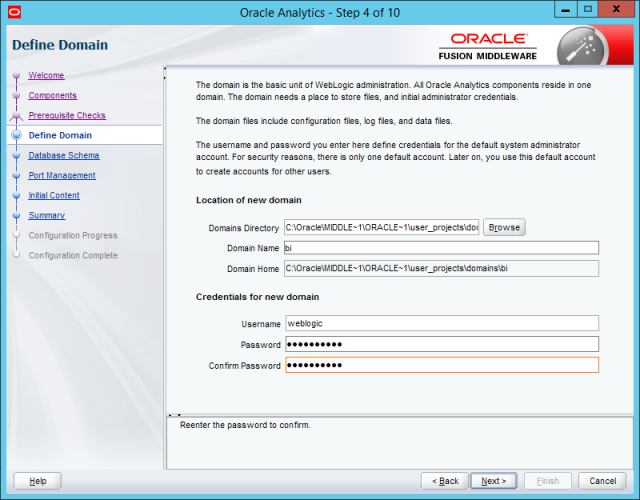

Configuration Script Run


Set JAVA_HOME = C:\Program Files\Java\jre1.8.0_341\bin
ORACLE_HOME\bi\bin\config.cmd
C:\Oracle\Middleware\Oracle_Home\bi\bin\config.cmd


Entry Points

For Future Reference

System Startup

Start Oracle Analytics Server System:

C:\Oracle\Middleware\Oracle_Home\user_projects\domains\bi\bitools\bin\start.cmd

C:\Oracle\Middleware\Oracle_Home\bi\bin\config.cmd

Entry points

WebLogic Console

http://192.168.21.147:9500/console

Fusion Middleware Control

http://192.168.21.147:9500/em

Publisher

http://192.168.21.147:9502/xmlpserver

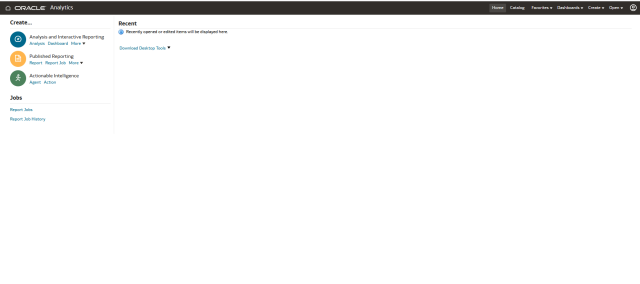

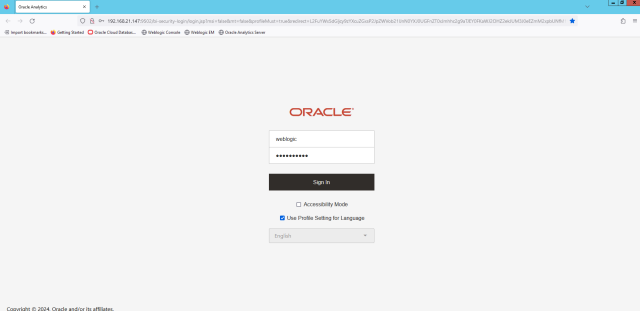

Analytics

http://192.168.21.147:9502/analytics

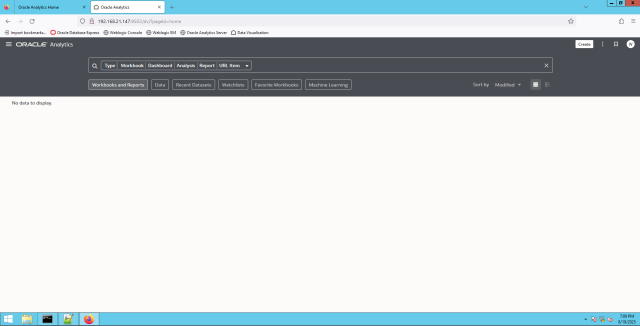

Data Visualization

http://192.168.21.147:9502/dv
